D22 JX Type Repair Sleeve Electric Power Fitting
- Detail Information
- Product Description
| Name: | Repair Sleeve JX Type | Material: | Aluminium Or Hot-dip Galvanized Steel |
|---|---|---|---|
| Weight: | 0.10 – 3.60 | Type: | JX Type |
| Certificate: | ISO9001/CE/ROHS | Brand: | LJ |
| High Light: |
Repair Sleeve Electric Power Fitting, D22 JX Type Repair Sleeve, ISO9001 Electric Power Fitting |
||
Repair sleeve JX type
Repair sleeve belongs to the field of non-load-bearing connectors in the power line system. It is mainly used for conductor wire strand breakage due to external force damage during line operation, and cross-sectional damage accounts for 7% to 17% of the total area. The conductor shall be repaired to avoid the continued expansion of the bulk stock and reduce the mechanical strength.
• The product is suitable for aluminum stranded wire and steel core aluminum stranded wire;
• The material is aluminium or hot-dip galvanized steel;

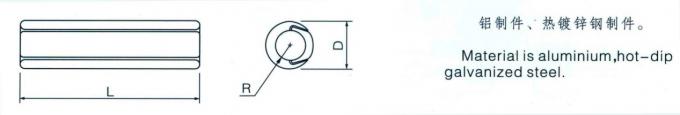

Technical data sheet
|
Catalog No. |
Suitable Steel Wire |
Dimensions |
Weight |
||
| D | L | R | |||
| JX-70/10 | LGJ-70/10 | 22 | 125 | 6.25 | 0.10 |
| JX-70/40 | LGJ-70/40 | 24 | 140 | 8.10 | 0.10 |
| JX-95 | LGJ-95/15/20 | 26 | 150 | 7.25 | 0.15 |
| JX-95/55 | LGJ-95/55 | 32 | 170 | 9.00 | 0.75 |
| JX-120/25 | LGJ-120/25 | 26 | 150 | 8.40 | 0.13 |
| JX-150 | LGJ-150/20/25 | 30 | 170 | 9.00 | 0.21 |
| JX-150/35 | LGJ-150/35 | 32 | 170 | 9.50 | 0.24 |
| JX-185/10 | LGJ-185/10 | 32 | 150 | 10.00 | 0.35 |
| JX-185 | LGJ-185/25/45 210/10 | 32 | 150 | 10.50 | 0.35 |
| JX-210 | LGJ-210/25 210/35 | 34 | 200 | 11.00 | 0.40 |
| JX-240 | LGJ-240/30/40 210/50 | 36 | 200 | 11.50 | 0.45 |
| JX-240/55 | LGJ-240/55 | 36 | 200 | 12.00 | 0.45 |
| JX-300/15 | LGJ-300/15 | 40 | 250 | 12.00 | 0.51 |
| JX-300 | LGJ-300/20/25/40/50 | 40 | 250 | 13.00 | 0.51 |
| JX-300/70 | LGJ-300/70 | 52 | 250 | 13.50 | 0.51 |
| JX-400 | LGJ-400/20/25/35/50 | 45 | 300 | 14.50 | 0.74 |
| JX-400/65 | LGJ-400/65 | 48 | 300 | 15.00 | 0.74 |
| JX-400/95 | LGJ-400/95 | 48 | 300 | 15.50 | 0.74 |
| JX-500 | LGJ-500/35/45/65 | 52 | 300 | 16.00 | 1.27 |
| JX-630 | LGJ-630/45/55/80 | 60 | 350 | 18.00 | 1.70 |
| JX-720/50 | ACSR-720/50 | 60 | 370 | 19.00 | 3.60 |
| JX-800/55 | LGJ-800/55 | 65 | 350 | 20.00 | 2.02 |
| JX-800 | LGJ-800/70/100 | 65 | 350 | 20.50 | 2.00 |
| JX-35G | GJ-35 | 16 | 100 | 4.20 | 0.09 |
| JX-55G | GJ-55 | 20 | 130 | 5.10 | 0.24 |
| JX-50G | GJ-50 | 18 | 100 | 4.50 | 0.15 |
| JX-70G | GJ-70 | 22 | 120 | 5.80 | 0.23 |
| JX-80G | GJ-80 | 24 | 150 | 6.00 | 0.39 |
| JX-100G | GJ-100 | 26 | 140 | 7.00 | 0.54 |
| JX-120G | GJ-120 | 28 | 170 | 7.50 | 0.58 |
| JX-135G | GJ-135 | 32 | 160 | 8.00 | 0.78 |
| JX-165G | GJ-165 | 34 | 185 | 8.00 | 0.96 |
| JX-50BG | LBGJ-50-20AC | 30 | 120 | 4.80 | 0.20 |
| JX-80BG | LBGJ-80-20AC | 24 | 150 | 6.70 | 0.38 |
| JX-100BG | LBGJ-100-20AC | 27 | 160 | 7.50 | 0.49 |
| JX-120BG | LBGJ-120-40AC | 27 | 170 | 8.10 | 0.61 |
| JX-185BG | LBGJ-185-20AC | 36 | 210 | 9.80 | 1.20 |
| JX-150BG | JLB40-150 | 26 | 180 | 8.90 | 0.67 |
| JX-95BG | JLB3-95 | 26 | 160 | 7.20 | 0.47 |
