Good Quality Hot Dip Galvanized Power Fittings U-Shaped Hanging Ring U-7 - ISO9001 110kV Arcing Horn Electric Power Fitting – Chuan Ding
Good Quality Hot Dip Galvanized Power Fittings U-Shaped Hanging Ring U-7 - ISO9001 110kV Arcing Horn Electric Power Fitting – Chuan Ding Detail:
- Detail Information
- Product Description
| Name: | Arcing Horn | Voltage: | 110kV |
|---|---|---|---|
| Weight: | 1.1 1.2 | Keyword: | Lightning Protection Arcing Horn |
| Certificate: | ISO9001/CE/ROHS | Brand: | LJ |
| High Light: |
Arcing Horn Electric Power Fitting, 110kV Electric Arcing Horn, ISO9001 Electric Power Fitting |
||
Arcing Horn (110kV)
Lightning protection arcing horn is a kind of brand-new lightning protection devices, which well combines the lightning protection concept of blocking type and channeling type, that is, a pair of arcing horn in parallel at both ends of the conductor insulator strings to form the discharge gap, when the conductor is impacted by lightning, it can quickly introduce lightning current to the earth through the discharge gap and protect the insulator strings from breakdown; When lightning strikes the tower, it can quickly lead the lightning current to the discharge gap until the arc disappears to prevent flashover damage of the insulator string.

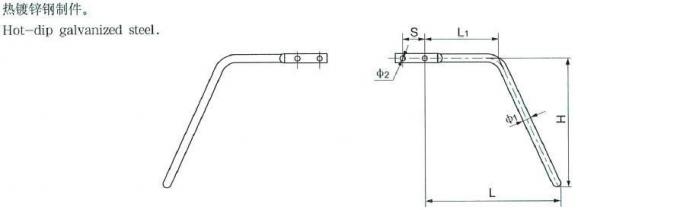

• Hot-dip galvanized steel;
Technical data sheet
Catalog No.
Dimensions
Weight
LL1Hφ1φ2SAH/ST-110D2591401431814401.1AH/ST-110X2591401631814401.2
Technical data sheet
Catalog No.
Dimensions
Weight
LL1Hφ 1φ 2BZHJ-10L7104622381613271.9AH/SS-110L019002201701614252.1
Catalog No.
Dimensions
Weight
LL1HφMS AH/DT-110D2751052371812801.4AH/DT-110X3211052211812801.5AH/SD-115E013461052221612801.2
Product detail pictures:
