IEC 61284 1997 Ball Eyes Electric Power Fitting
- Detail Information
- Product Description
| Name: | Electric Power Fitting | Brand: | LJ |
|---|---|---|---|
| Certificate: | ISO9001/CE/ROHS | Technical Requirements: | IEC 61284-1997 |
| Rated Failure Load: | 120 | Weight: | 1.5 |
| High Light: |
IEC 61284 1997 Ball Eyes Fitting, IEC 61284 1997 Electric Power Fitting, IEC 61284 1997 Ball Eyes |
||
Ball Eyes
Ball Eyes is used for connecting the overhead line fitting strings with the insulator ball socket end, and supporting other fittings to form one insulator fitting string, and connecting the wire to the poles or towers.
• The product is made of hot-dip galvanized steel;
• Meet the technical requirements o IEC 61284-1997 and conform to IEC 60120 coupling code 16,20 and 24
Technical data sheet

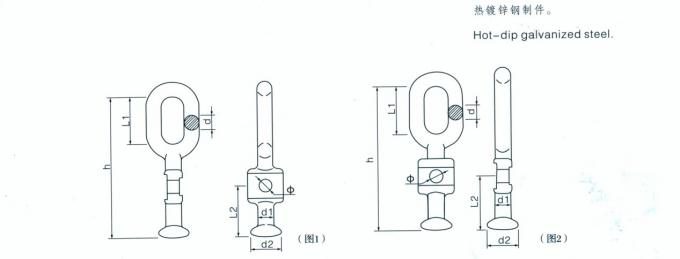

| Fig. | Dimensions | Rated Failure Load | Weight | |||||||
| h | d | φ | d1 | d2 | L1 | L2 | ||||
| Q-10N | 1 | 152 | 16 | 14 | 17 | 33.3 | 51 | 55 | 100 | 0.7 |
| Q-12N | 1 | 165 | 18 | 14 | 17 | 33.3 | 68 | 55 | 120 | 0.8 |
| Q-16N | 1 | 185 | 20 | 14 | 21 | 41.0 | 75 | 60 | 160 | 1.5 |
| Q-1ONP | 2 | 152 | 19 | 14 | 17 | 33.3 | 51 | 55 | 100 | 0.9 |
| Q-12NP | 2 | 165 | 18 | 14 | 17 | 33.3 | 68 | 55 | 120 | 0.8 |
Technical data sheet

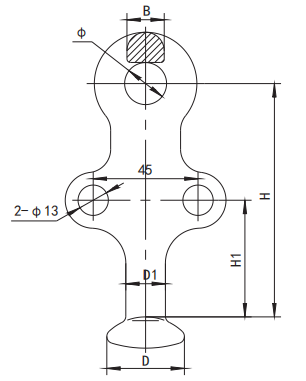

| Ball Code | Dimensions | Rated Failure Load | Weight | ||||||
| H | B | φ | D1 | D | H1 | ||||
| QPJ-07100 | 16 | 100 | 16 | 18 | 17 | 33.3 | 50 | 70 | 0.8 |
| QPJ-10110 | 16 | 110 | 16 | 20 | 17 | 33.3 | 50 | 100 | 0.9 |
| QPJ-12110 | 16 | 110 | 16 | 24 | 17 | 33.3 | 50 | 120 | 0.9 |
| QPJ-16120 | 20 | 120 | 18 | 26 | 21 | 41.0 | 55 | 160 | 1.0 |
| QPJ-21120 | 20 | 120 | 20 | 26 | 21 | 41.0 | 60 | 210 | 1.0 |
