LJ High Voltage Hole Distance 380 HV Cable Clamp

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description

Product Name: HV CABLE CLAMP Certificated: ISO9001/CE/ROHS
Hole Distance: 360-380 Application: High-voltage Cables
Suitable For: 3×φ145-φ160 Usage: Electric Power Line Construction
High Light:

Hole Distance 380 HV Cable Clamp

,

High Voltage HV Cable Clamp

,

LJ HV Cable Clamp

HV CABLE CLAMP

Description:

With the wide application of high-voltage cables, it is necessary to fix the laying of the cables in the cable trenches and the installation of the high-voltage line towers. In order to ensure the safety of cable operation and take into account energy-saving factors, our company has developed and produced a series of special high and low voltage cable fixing fittings according to users’ different installation methods and different places of use to meet the needs of users.

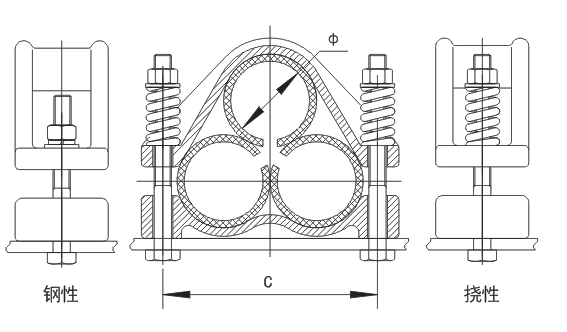

JGP HV CABLE CLAMP

Rigidity Flexibility Applicable cable range Suitable

For

Hole Distance
JGP-01 JGPH-01 3×φ25-φ35 106-116
JGP-0 JGPH-0 3×φ35-φ45 125-132
JGP-1 JGPH-1 3×φ45-φ55 145-155
JGP-2 JGPH-2 3×φ55-φ68 180-190
JGP-3 JGPH-3 3×φ68-φ80 210-225
JGP-4 JGPH-4 3×φ80-φ90 230-245
JGP-5 JGPH-5 3×φ90-φ104 250-260
JGP-6 JGPH-6 3×φ100-φ114 280-290
JGP-7 JGPH-7 3×φ114-φ130 300-310
JGP-8 JGPH-8 3×φ130-φ145 340-350
JGP-9 JGPH-9 3×φ145-φ160 360-380

LJ High Voltage Hole Distance 380 HV Cable Clamp 0

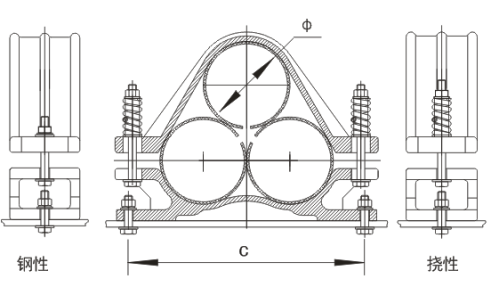

JGP-F type HV CABLE CLAMP

Rigidity Flexibility Applicable cable range
JGP-01F JGPH-01F 3×φ25-φ35 106-116
JGP-0F JGPH-0F 3×φ35-φ45 125-132
JGP-1F JGPH-1F 3×φ45-φ55 145-155
JGP-2F JGPH-2F 3×φ55-φ68 180-190
JGP-3F JGPH-3F 3×φ68-φ80 210-225
JGP-4F JGPH-4F 3×φ80-φ90 230-245
JGP-5F JGPH-5F 3×φ90-φ104 250-260
JGP-6F JGPH-6F 3×φ100-φ114 280-290
JGP-7F JGPH-7F 3×φ114-φ130 300-310
JGP-8F JGPH-8F 3×φ130-φ145 340-350
JGP-9F JGPH-9F 3×φ145-φ160 360-380

LJ High Voltage Hole Distance 380 HV Cable Clamp 1

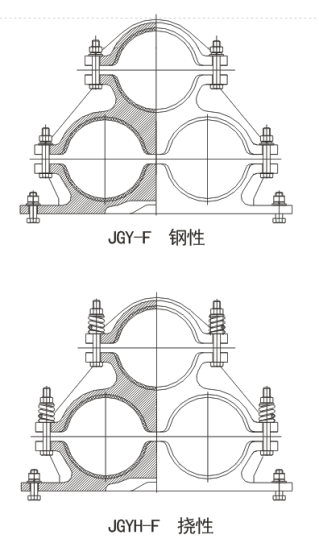

JGY CABLE CLAMP

Rigidity Flexibility Applicable cable range
JGY-01F JGYH-01F 3×φ45~φ60
JGY-0F JGYH-0F 3×φ60~φ80
JGY-1F JGYH-1F 3×φ80~φ100
JGY-2F JGYH-2F 3×φ100~φ120
JGY-3F JGYH-3F 3×φ120~φ140
JGY-4F JGYH-4F 3×φ140~φ160

LJ High Voltage Hole Distance 380 HV Cable Clamp 2

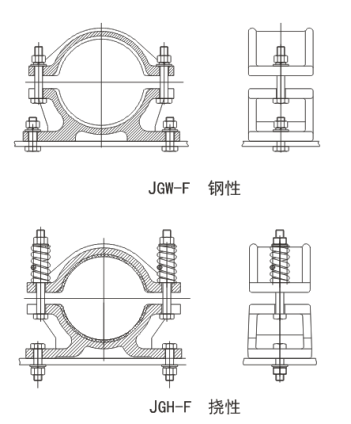

JGW-F, JGH-F type HV CABLE CLAMP

Rigidity Flexibility Applicable cable range
JGW-01F JGH-01F φ45-φ60
JGW-0F JGH-0F φ60-φ80
JGW-1F JGH-1F φ80-φ100
JGW-2F JGH-2F φ100-φ120
JGW-3F JGH-3F φ120-φ140
JGW-4F JGH-4F φ140-φ160
JGW-5F JGH-5F φ160-φ180
JGW-6F JGH-6F φ180-φ200

LJ High Voltage Hole Distance 380 HV Cable Clamp 3

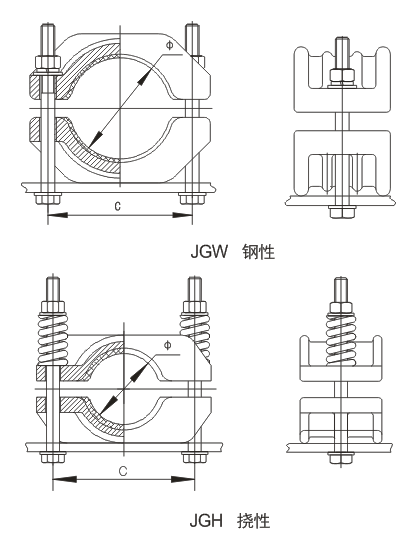

JGW, JGW type HV CABLE CLAMP

Rigidity Flexibility Applicable cable range
JGW-01 JGH-01 φ45-φ60 100-110
JGW-0 JGH-0 φ60-φ80 105-115
JGW-1 JGH-1 φ80-φ100 135-150
JGW-2 JGH-2 φ100-φ120 150-165
JGW-3 JGH-3 φ120-φ140 190
JGW-4 JGH-4 φ140-φ160 210
JGW-5 JGH-5 φ160-φ180 240
JGW-6 JGH-6 φ180-φ200 240-260

LJ High Voltage Hole Distance 380 HV Cable Clamp 4

Rigidity Flexibility Applicable cable range φ C
JGFW-55C095 JGFWH-55C095 φ40~φ55 55 95
JGFW-65C100 JGFWH-65C100 φ50~φ65 65 100
JGFW-80C115 JGFWH-80C115 φ65~φ80 80 115
JGFW-95C130 JGFWH-95C130 φ80~φ95 95 130
JGFW-110C145 JGFWH-110C145 φ95~φ110 110 145
JGFW-125C160 JGFWH-125C160 φ110~φ125 125 160
JGFW-140C175 JGFWH-140C175 φ125~φ140 140 175
JGFW-155C190 JGFWH-155C190 φ140~φ155 155 190
JGFW-170C205 JGFWH-170C205 φ155~φ170 170 205
JGFW-185C220 JGFWH-185C220 φ170~φ185 185 220

LJ High Voltage Hole Distance 380 HV Cable Clamp 5

LJ High Voltage Hole Distance 380 HV Cable Clamp 6LJ High Voltage Hole Distance 380 HV Cable Clamp 7

LJ High Voltage Hole Distance 380 HV Cable Clamp 8

LJ High Voltage Hole Distance 380 HV Cable Clamp 9LJ High Voltage Hole Distance 380 HV Cable Clamp 10
