MGS MGSG Flexible Bus Bar Clamp For Continuation
- Detail Information
- Product Description
| Name: | Bus Bar Flexible Clamps | Material:: | Body And Gland Are Made Of Aluminum, And The Rest Are Made Of Hot-dip Galvanized Steel |
|---|---|---|---|
| Certificate: | ISO9001/CE/ROHS | Application:: | Continuation And Repair Of Overhead Power Lines |
| Brand Name:: | LJ | Type:: | MGS MGSG Type |
| High Light: |
MGSG Flexible Bus Bar Clamp, Continuation Flexible Bus Bar Clamp, MGS MGSG Bus Bar Clamp |
||
MGS,MGSG Bus-bar Flexible clamps (A is 0°,B is 30°,C is 90°)
Description:
Connection fittings are mainly used for the continuation and repair of overhead power lines and lightning protection lines. According to the different structure and installation method, it is divided into compression type, bolt type and pre-twisted type. Compression type is divided into hydraulic pressure, burst pressure and clamp pressure.

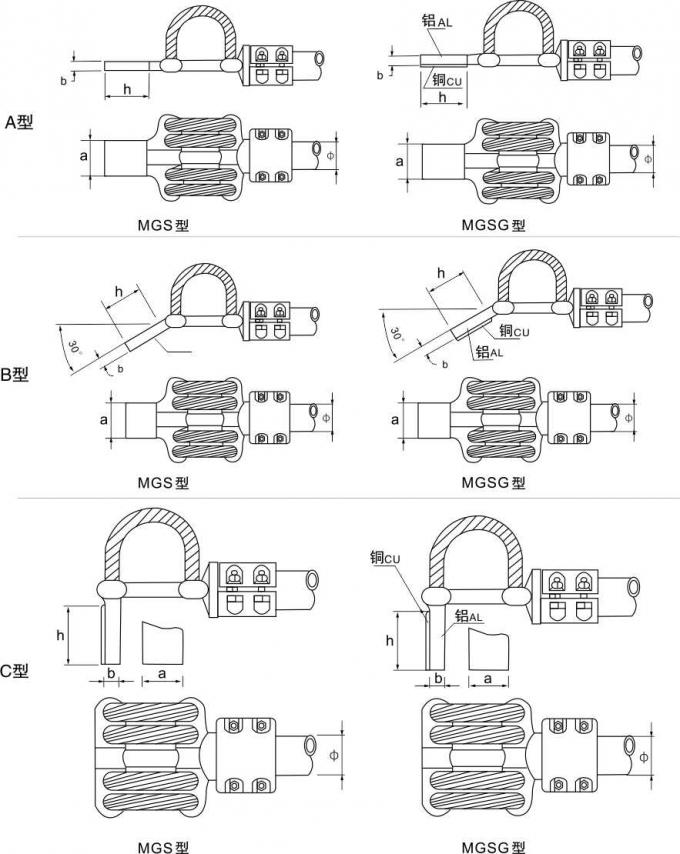

Drawing:
Technical parameter:
MGS:
| Suitable Conductor(mm) | Dimensions(mm) | ||||
| Φ | B | L | H | ||
| MGS-50A(B,C) | Φ50/45 | 50 | 60 | 75 | 14 |
| MGS-60A(B,C) | Φ60/54 | 60 | 60 | 75 | 14 |
| MGS-70A(B,C) | Φ70/64 | 70 | 80 | 85 | 16 |
| MGS-80A(B,C) | Φ80/72 | 80 | 80 | 85 | 16 |
| MGS-90A(B,C) | Φ90/80 | 90 | 100 | 105 | 18 |
| MGS-100A(B,C) | Φ100/90 | 100 | 100 | 105 | 18 |
| MGS-110A(B,C) | Φ110/100 | 110 | 100 | 105 | 18 |
| MGS-120A(B,C) | Φ120/110 | 120 | 100 | 105 | 18 |
| MGS-130A(B,C) | Φ130/116 | 130 | 125 | 130 | 20 |
| MGS-150A(B,C) | Φ150/136 | 150 | 125 | 130 | 20 |
MGSG:
| Suitable Conductor(mm) | Dimensions(mm) | ||||
| φ | B | L | H | ||
| MGSG-50A(B,C) | φ50/45 | 50 | 60 | 75 | 14 |
| MGSG-60A(B,C) | φ60/54 | 60 | 60 | 75 | 14 |
| MGSG-70A(B,C) | φ70/64 | 7O | 80 | 85 | 16 |
| MGSG-80A(B,C) | φ80/72 | 80 | 80 | 85 | 16 |
| MGSG-90A(B,C) | φ90/80 | 90 | 100 | 105 | 18 |
| MGSG-100A(B,C) | φ100/90 | 100 | 100 | 105 | 18 |
| MGSG-110A(B,C) | φ110/100 | 110 | 100 | 105 | 18 |
| MGSG-120A(B,C) | φ120/110 | 120 | 100 | 105 | 18 |
| MGSG-130A(B,C) | φ130/116 | 130 | 125 | 130 | 20 |
| MGSG-150A(B,C) | φ150/136 | 150 | 125 | 130 | 20 |
1. The MGS type is an aluminum wire clip; the MGSG type is a copper-aluminum transition wire clip, and its model name is: MGSG-××A. MGSG uses MGS as a brazed copper plate;
2. If the size h and a change, please indicate h×a when ordering.
Note: 1. The body and gland are made of aluminum, and the rest are made of hot-dip galvanized steel
2. If the size of the terminal board required by the user is different from the above, please specify when ordering;
3. A means α=0° (horizontal); B means α=30°; C means α=90°
