Ø250 Terminal connector Busbar Substation Fittings
- Detail Information
- Product Description
| Material:: | The Main Body And Gland Are Aluminum ,the Other Parts Are Hot-dip Galvanized Steel | Application: | Tubular Bus-bar Substation Fittings |
|---|---|---|---|
| Name: | Terminal Connector | Brand Name:: | LJ |
| Model Number:: | MGP MGT MGT-C MGT-D(S) | Product Type:: | Substation Fitting |
| High Light: |
Terminal Connector Busbar Substation Fittings, Ø250 Busbar Substation Fittings, Ø250 busbar Terminal Connector |
||
Terminal connector for tubular bus-bar substation fittings
Place of Origin: China
Brand Name:LJ
Model Number:MGP MGT MGT-C MGT-D(S)
Material:The main body and gland are aluminum ,the other parts are hot-dip galvanized steel.
Product Type:substation fitting
Payment way: T/T,L/C
Packaging Details:standard export package
Description:
Substation fittings also called heavy-current bus-bar fittings,it includes the fittings which fix and support the cord,rope-lay stranded conductor and kinds of rigid busbar of the power distribution equipments in the power station and substation.According to rigid busbar,there are rectangular bus bars,rhombus bus bars and channel bus bars which fix with the flexible bus bar.
The words of the products model as follows:
M-bus bars N-indoor M-outdoor P-flatwise L-Vertical setting G-tubulose,interval J-rectangle C- groove shape D-hang
Specification and Drawing details:

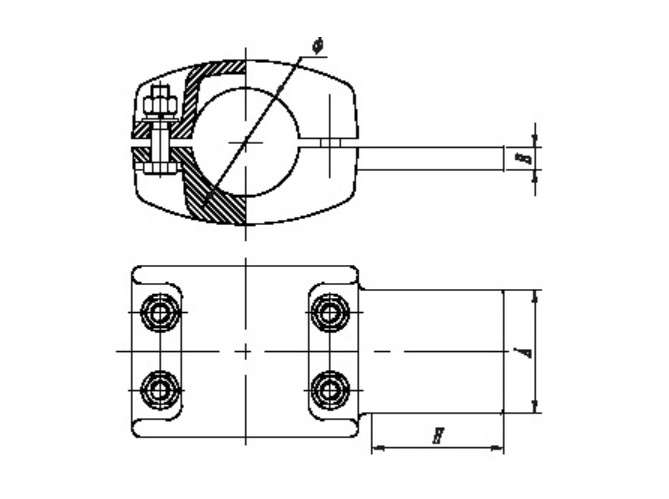

MGP:
| Type | Spec.of applicable busbar | MAIN DIMENSIONS(mm) | ||||
| Ø | A | H | B | |||
| MGP-30 | Ø30/25 | 30 | 60 | 65 | 14 | |
| MGP-40 | Ø40/35 | 40 | 60 | 65 | 14 | |
| MGP-50 | Ø50/45 | 50 | 60 | 75 | 14 | |
| MGP-60 | Ø60/54 | 60 | 60 | 75 | 14 | |
| MGP-70 | Ø70/64 | 70 | 80 | 85 | 16 | |
| MGP-80 | Ø80/72 | 80 | 80 | 85 | 16 | |
| MGP-100 | Ø100/90 | 100 | 100 | 105 | 18 | |
| MGP-110 | Ø110/100 | 110 | 100 | 105 | 18 | |
| MGP-120 | Ø120/110 | 120 | 100 | 105 | 18 | |
| MGP-130 | Ø130/116 | 130 | 125 | 130 | 20 | |
| MGP-150 | Ø150/136 | 150 | 125 | 130 | 20 | |
| MGP-170 | Ø170/156 | 170 | 150 | 160 | 22 | |
| MGP-200 | Ø200/180 | 200 | 160 | 170 | 22 | |
| MGP-250 | Ø250/230 | 250 | 170 | 180 | 24 | |

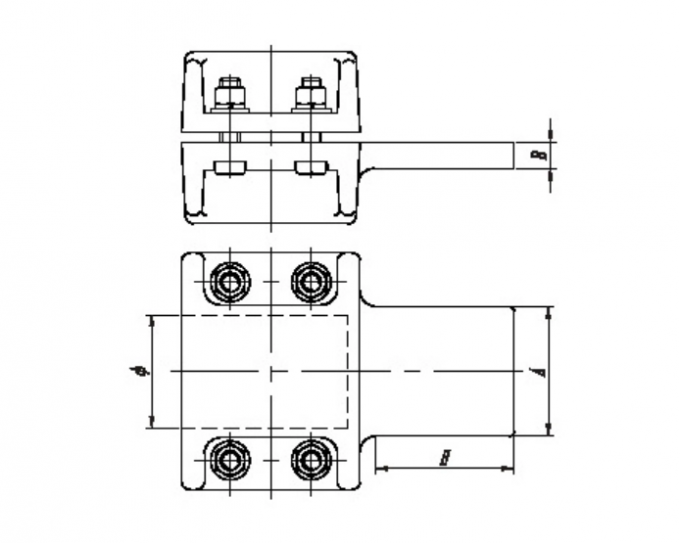

MGT:
| Type | Spec.of applicable busbar | MAIN DIMENSIONS(mm) | ||||
| Ø | A | H | B | |||
| MGT-30 | Ø30/25 | 30 | 60 | 65 | 14 | |
| MGT-40 | Ø40/35 | 40 | 60 | 65 | 14 | |
| MGT-50 | Ø50/45 | 50 | 60 | 75 | 14 | |
| MGT-60 | Ø60/54 | 60 | 60 | 75 | 14 | |
| MGT-70 | Ø70/64 | 70 | 80 | 85 | 16 | |
| MGT-80 | Ø80/72 | 80 | 80 | 85 | 16 | |
| MGT-100 | Ø100/90 | 100 | 100 | 105 | 18 | |
| MGT-110 | Ø110/100 | 110 | 100 | 105 | 18 | |
| MGT-120 | Ø120/110 | 120 | 100 | 105 | 18 | |
| MGT-130 | Ø130/116 | 130 | 125 | 130 | 20 | |
| MGT-150 | Ø150/136 | 150 | 125 | 130 | 20 | |
| MGT-170 | Ø170/156 | 170 | 150 | 160 | 22 | |
| MGT-200 | Ø200/180 | 200 | 160 | 170 | 22 | |
| MGT-250 | Ø250/230 | 250 | 170 | 180 | 24 | |

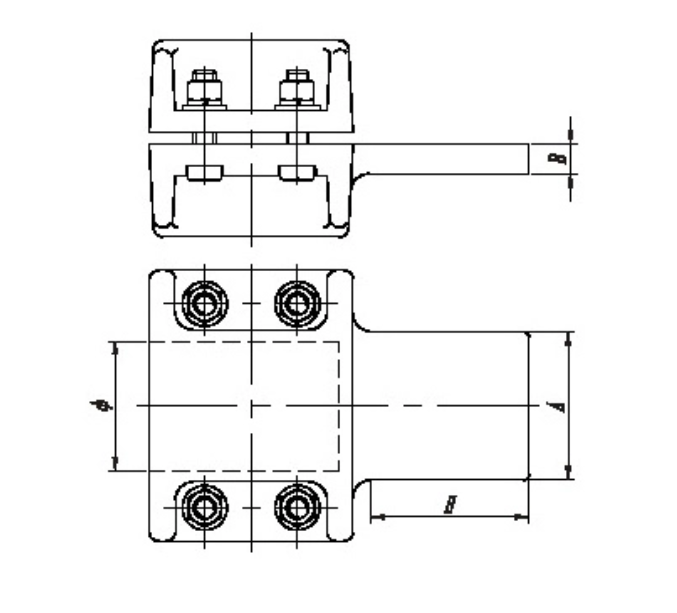

MGT-C:
| Type | Spec.of applicable busbar | MAIN DIMENSIONS(mm) | |||
| Ø | A | H | B | ||
| MGT-50C | Ø50/45 | 50 | 60 | 75 | 14 |
| MGT-60C | Ø60/54 | 60 | 60 | 75 | 14 |
| MGT-70C | Ø70/64 | 70 | 80 | 85 | 16 |
| MGT-80C | Ø80/72 | 80 | 80 | 85 | 16 |
| MGT-100C | Ø100/90 | 100 | 100 | 105 | 18 |
| MGT-110C | Ø110/100 | 110 | 100 | 105 | 18 |
| MGT-120C | Ø120/110 | 120 | 100 | 105 | 18 |
| MGT-130C | Ø130/116 | 130 | 125 | 130 | 20 |
| MGT-150C | Ø150/136 | 150 | 125 | 130 | 20 |
| MGT-170C | Ø170/156 | 170 | 150 | 160 | 22 |
| MGT-200C | Ø200/180 | 200 | 160 | 170 | 22 |
| MGT-250C | Ø250/230 | 250 | 170 | 180 | 24 |

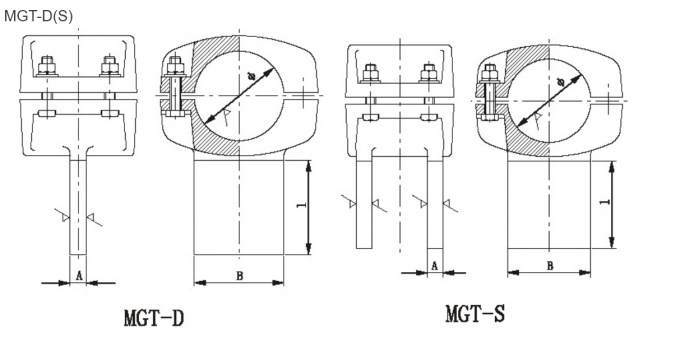

MGT-D(S):
| Type | APPLICABLEBUS BAR SPEC. | MAIN DIMENSIONS(mm) | |||
| Ø | A | H | B | ||
| MGT-70D(S) | Ø70/64 | 70 | 80 | 85 | 16 |
| MGT-80D(S) | Ø80/72 | 80 | 80 | 85 | 16 |
| MGT-90D(S) | Ø90/80 | 90 | 100 | 105 | 18 |
| MGT-100D(S) | Ø100/90 | 100 | 100 | 105 | 18 |
| MGT-110D(S) | Ø110/100 | 110 | 100 | 105 | 18 |
| MGT-120D(S) | Ø120/110 | 120 | 100 | 105 | 18 |
| MGT-130D(S) | Ø130/116 | 130 | 125 | 130 | 20 |
| MGT-150D(S) | Ø150/136 | 150 | 125 | 130 | 20 |
| MGT-170D(S) | Ø170/156 | 170 | 150 | 160 | 22 |
| MGT-200D(S) | Ø200/180 | 200 | 160 | 170 | 22 |
| MGT-250D(S) | Ø250/230 | 250 | 170 | 180 | 24 |
