NY Tension Clamps (Hydraulic Compression Type)
NY Tension Clamp is suitable for fixing the wire or lightning conductor to the overhead power line tension insulator string of the non-linear tower, for anchoring, and for fixing the cable of the cable tower.
• The clamp body and jumpers are aluminum, the steel anchor is made of hot-dip galvanized steel;
• The clamp can be easily installed without damage to the cables or conductor;
• Grip strength of the clamp is more than 95% break strength of the conductor.
• Standard: IEC 61284-1997

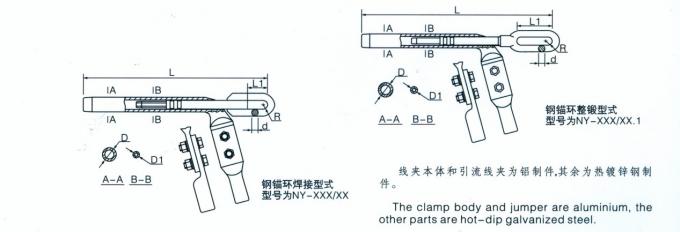

Technical data sheet
|
Suitable Conductor |
Dimensions |
Slip Strength |
Weight | ||||||
| D | D1 | d | L | L1 | R | ||||
| NY-70/40 | LGJ-70/40 | 32 | 18 | 16 | 450 | 55 | 11.0 | 55 | 2.3 |
| NY-95/55 | LGJ-95/55 | 32 | 18 | 18 | 500 | 55 | 10.0 | 74 | 2.5 |
| NY-150/20 | LGJ-150/20 | 32 | 14 | 16 | 390 | 55 | 8.5 | 44 | 2.1 |
| NY-150/25 | LGJ-150/25 | 32 | 14 | 16 | 410 | 65 | 8.5 | 52 | 2.2 |
| NY-185/25 | LGJ-185/25 | 32 | 14 | 16 | 460 | 55 | 9.0 | 57 | 2.3 |
| NY-240/30 | LGJ-240/30 | 36 | 16 | 18 | 520 | 55 | 11.0 | 72 | 2.7 |
| NY-240/40 | LGJ-240/40 | 36 | 16 | 18 | 535 | 55 | 11.0 | 79 | 2.8 |
| NY-240/55 | LGJ-240/55 | 36 | 20 | 18 | 565 | 55 | 11.0 | 97 | 2.9 |
| NY-300/15 | LGJ-300/15 | 40 | 14 | 165 | 515 | 50 | 11.0 | 65 | 3.5 |
| NY-300/20 | LGJ-300/20 | 40 | 14 | 18 | 590 | 55 | 12.0 | 72 | 3.5 |
| NY-300/25 | LGJ-300/25 | 40 | 14 | 18 | 600 | 55 | 12.0 | 79 | 3.6 |
| NY-300/40 | LGJ-300/40 | 40 | 16 | 18 | 610 | 55 | 12.0 | 88 | 3.6 |
| NY-300/50 | LGJ-300/50 | 40 | 19 | 20 | 560 | 65 | 12.0 | 98 | 3.7 |
| NY-300/70 | LGJ-300/70 | 42 | 22 | 20 | 665 | 60 | 12.5 | 122 | 3.8 |
| NY-400/20 | LGJ-400/20 | 45 | 14 | 18 | 540 | 55 | 11.0 | 84 | 3.6 |
| NY-400/25 | LGJ-400/25 | 45 | 16 | 18 | 610 | 70 | 13.0 | 91 | 3.7 |
| NY-400/35 | LGJ-400/35 | 45 | 16 | 20 | 640 | 65 | 13.5 | 99 | 4.0 |
| NY-400/50 | LGJ-400/50 | 45 | 20 | 20 | 660 | 70 | 14.0 | 117 | 4.8 |
| NY-400/65 | LGJ-400/65 | 48 | 22 | 22 | 640 | 70 | 13.0 | 128 | 5.8 |
| NY-400/95 | LGJ-400/95 | 48 | 26 | 22 | 735 | 80 | 15.0 | 163 | 6.6 |
| NY-500/35 | LGJ-500/35 | 52 | 16 | 20 | 620 | 65 | 14.0 | 114 | 5.3 |
| NY-500/45 | LGJ-500/45 | 52 | 18 | 20 | 625 | 70 | 14.0 | 122 | 5.4 |
| NY-500/65 | LGJ-500/65 | 52 | 22 | 20 | 720 | 70 | 15.0 | 146 | 6.2 |
| NY-630/45 | LGJ-630/45 | 60 | 18 | 22 | 700 | 70 | 16.0 | 141 | 7.7 |
| NY-630/55 | LGJ-630/55 | 60 | 24 | 22 | 700 | 75 | 17.0 | 156 | 7.9 |
| NY-630/80 | LGJ-630/80 | 60 | 24 | 24 | 810 | 80 | 15.0 | 3183 | 9.2 |
